Intuitive and easy to-use
업무효율성에 맞춰 화면구성및 다양한 기능의 인터페이스를 터치스크린을 통해 한번 클릭으로 대부분의 기능을 액세스 할수 있습니다.
다양한 주변기기의 활용으로 다양한 업종에 적합하며 빠른속도와 빠른 업무속도를 처리할수 있어
고객의 빠른대응이 가능합니다.
Choose the POS hardware that suits your needs
업무환경 업장에 따라 다양한 디자인의 포스시스템을 선택할수 있습니다. 옵션에 따라 고객용 디스플레이와 컬러등을 선택할수 있습니다. 해당 모델을 상세하기 보시려면 아래 그림을 참고 하십시요
JABA/DCR™ x86
터치 스크린, 고속 프린터, 카드 리더기, 고객 표시창을 모두 내장한 올인원 장비입니다.
또한 콤팩트한 사이즈와 강력한 성능을 내장하여 공간활용도가 높아
철물점, 주얼리샵, 화장품전문점에 적합한 POS장비입니다.
상세보기
P2C-E250
Touch POS P2C-S250 i3 7100U Fanless
• 멀티 모니터 지원(HDMI, DVI, DP, VGA)
• 다양한 I/O 포트 및 전원 지원 시리얼 포트
• 알루미늄 프레임으로 CPU 발열 최적화, 무팬 설계, 내구성·정전기 방지

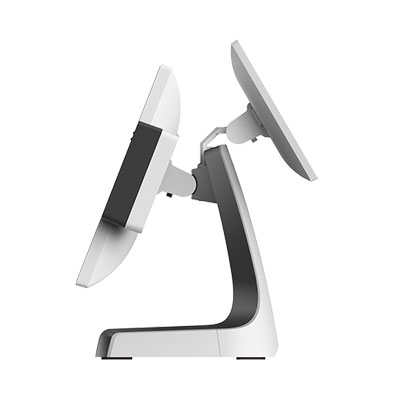

• 수평(포스)·수직(키오스크) 간단 전환 가능
• 우수한 멀티 터치 기술과 밝고 선명한 15인치 디스플레이
• 충분한 확장 포트와 다양한 주변기기와의 호환
• 저전력 저발열의 안정적인 팬리스 구조
• 다양한 옵션 기기 제공
How to Buy Datasheet
Features & Benefits
Compact and Easy-to-Install
The BLUO is a compact POS System designed to fit into any store environments. Its practical and unique design is a perfect combination of form and function. It delivers optimum convenience by giving easy access to I/O ports on the upper part of the monitor. The BLUO offers superior cable management by putting system cables inside its back cover.
General SpecSpecifications
| General Specifications | ||
| System | ||
| Processor | E-250 | Intel® Celeron® Quad-core Processor J6412 2.0GHz/2.6GHz |
| Chipset | Intel® Elkhart Lake SoC / AMI | |
| Memory | J19 4GB Standard, DDR3L 1600 MT/s, Socket 1 x SODIMM |
|
| Storage | 2.5″ SATA III SSD 128GB (HDD 500GB) | |
| RAID | – | |
| OS | Windows 10 IoT Enterprise(64bit), Windows 11(64bit) | |
| Audio | 1 x Audio-out / 3.5mm | |
| Display | ||
| Type | 15″ TFT LED Backlight |
|
| Resolution | 1024 x 768 |
|
| Brightness | 300 cd/㎡ | |
| Touch Screen | Projective Capacitive Touch | |
| Interface | ||
| Display | 15″ WLED Backlight (Brightness: 350 cd/㎡, 1024 x 768 Resolution) | |
| 2nd Display | 1 x DisplayPort (included 1 x USB 2.0 / Power Delivery +12V) *Can be used for HDMI and Standard DVI, VGA monitor by passive cable. | |
| USB | J19 4 (Rear 4 = USB 3.0 x 2, USB 2.0 x 2) Qs/J19 2(Reserved for MSR, SCR, i-Button/Touch Controller),RJ-45 |
|
| PS/2 Port | 1 (Reserved for Keyboard or Mouse) |
|
| Serial | · 6 (DB9 x 3, RJ50 x 2, RJ11 x 1) COM1, 3, 5: DB9(+5V on pin #9, selectable by BIOS) |
|
| · COM2, 4 (RJ50, RJ45): Support +5V and 12V(G200 only) for Special Devices and can be used for Kitchen Printer |
||
| · COM6(RJ11): USB 2.0 and RS232 with +5V/1A for Card Reader |
||
| LAN | J19 1 x Gigabit Ethernet, RJ-45 |
|
| Audio | 1 x Line-out, 1 x Mic-in |
|
| Power DC-IN |
J19 1 x (4 Pin Connector) |
|
| Power | ||
| Adapter Input |
DC 12V/5A (AC 100V~240V, 60W) | |
| Physical & Environmental | ||
| Operating Temperature | Operating: 0 ~ 50℃ at 10% to 90% humidity | |

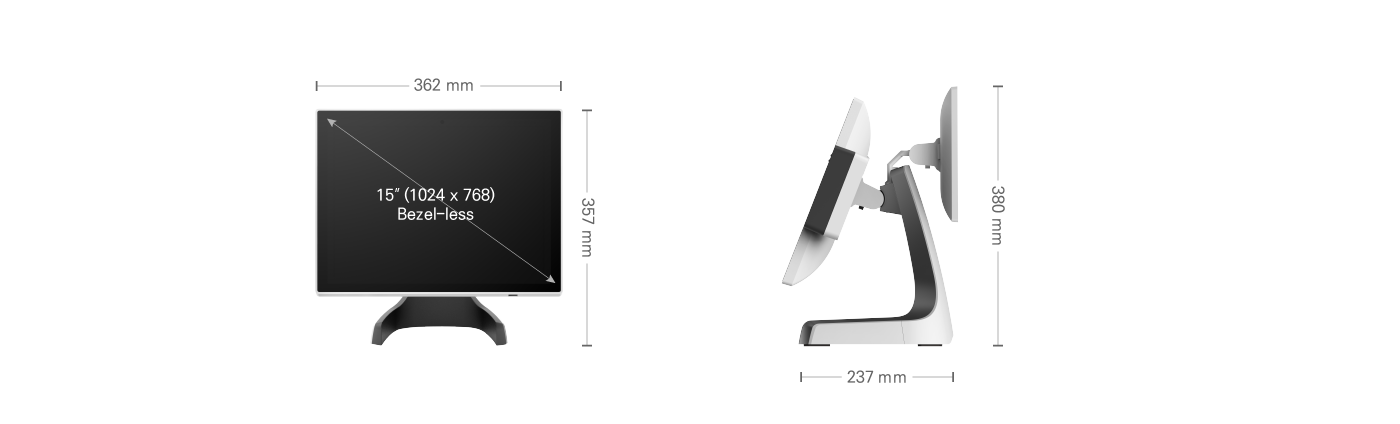

| Dimensions (W x H x D) |
362 x 237 x 357 (mm) / 14.2 x 9.3 x 14.0 (inch) | |
| Packing Dimension (W x H x D) |
430 x 290 x 430 (mm) | |
| Net Weight | 6.7 kg | |
| Packing Weight | 9,500g, 20.9bs |
|
| Certification | CE, FCC, KC |
|
| Color | High Gloss Black, High Gloss White |
|
*Specifications may change without prior notice. |
||
